Technical Data as per  IS:9968 (Pt-1) ,  IS: 6380 -1984 & IS : 8130-1984

• Temperature range: Continuous  -50 deg C  to +180 deg C
• Temperature range: Short Term   -30 deg C  to +250 deg C
• Rated voltage: Up to 1100 volts
• Test voltage: 3000 volts for 5 minutes
• Insulation Resistance: 20 M ohm / kilometre at 20 degree centigrade

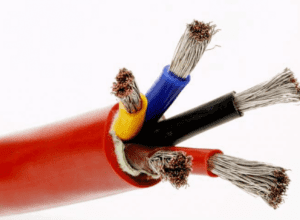

 CABLE CONSTRUCTION

• Conductor material: ATC Wires having 99.96% purity
• Conductor : Class-5 Flexibility as per IS : 8130-1984
• Insulation: Silicone Rubber type IE- 5
• Sheath : Silicone Rubber type SE-5
• Special Feature: Halogen Free Low Smoke
• Outer coverage: Silicone impregnated Fiber Glass Braiding
• Flexibility: Class-5 highly flexible
• Special Sheath: HOFR ( Heat and Oil Resistant Flame Retardant)
• Speciality: Suitable where heat or the interaction of extremely high and low temperatures rapidly causes cable insulation to become brittle and inflexible causing cracks.

Applications

• EOT Cranes
• Steel Melting shop
• Airport lighting and Aircraft wiring
• Ship wiring
• Textile Machines
• Turbines
• Construction equipment
• Nuclear and thermal power station
• Wind Power Mills
• Bakery machinery
