Optical Fiber Cable Suppliers
Fiber Optic Cable Single Mode & Multi Mode

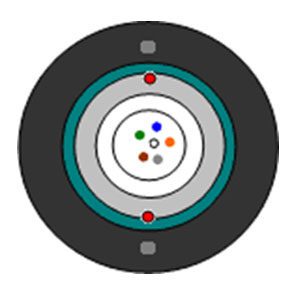

Fiber Optic – Central Tube – Glass Yarn/Steel Wire – Armored/Single PE Jacket
Cable Characteristics-
| DESCRIPTION: | ||
| 2 – 48 optical fibers, Central gel filling loose tubes, Flexible non-metallic strength member – glass yarn, two rip cords, CSTA armor, Two Steel Wires Embedded in Single PE jacket (black). | ||
PHYSICAL CHARACTERISTICS | ||
| Fiber Type | 125/250 μm | |
| Number of Fibers | 12 | |
| Fiber Color Code Chart: | ||
| Number | Color | |
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Slate | |
| 6 | Natural | |
| Buffer Tube Material | PBT – Polybutylene Terephthalate | |
| Buffer Tube Filling Material | Synthetic Thixotropic Gel | |
STRENGTH MEMBER: | ||
| Strength Member Material | Glass yarn, Two Steel Wire Embedded in Sheath | |
ARMORING: | ||
| Armor Type | Corrugated | |
| Armor Material | Steel Tape | |
OUTER JACKET: | ||
| Outer Jacket Material | PE – Polyethylene | |
| Outer Jacket Color | Black | |
OVERALL DIAMETER: | ||
| Overall Nominal Diameter | 8.7 mm | |
MECHNICAL CHARACTERISTICS | ||
| Temperature Range | – 40℃ To + 70℃ | |
| Bulk Cable Weight | 85 kg/km | |
| Max. Tensile Force | 2000 N | |
| Max. Crush Resistance for 60 seconds | 1000 N/100mm, Passes IEC60794-1 | |
| Min. Bend Radius | 20 × Cable OD | |
APPLICABLE SPECIFICATION AGENCY COMPLIANCE | ||
APPLICABLE STANDARDS | ||
| Specification | IEC 60794-1, | |
| RoHS Compliant (Y/N) | Y (for outer jacket only) | |
SUITABILITY | ||
| Suitability – Indoor (Y/N) | Y | |
| Suitability – Outdoor (Y/N) | Y (where waterproof is not strictly required.) | |
| Suitability – Aerial (Y/N) | Y | |
| Suitability – Duct (Y/N) | N | |
| Suitability – Direct Burial (Y/N) | N | |
| Sunlight Resistance (Y/N) | Y | |
Optical Characteristics
SINGLE MODE FIBERS | G652.D |
| Belden Fiber Code | U12 |
| Typical Mode Field Diameter @ 1310nm | 9.2 ± 0.4 μm |
| Typical Mode Field Diameter @ 1550nm | 10.4 ± 0.5 μm |
| Cladding Diameter | 125 ± 0.7 μm |
| Clad Non-Circularity | ≤ 0.7 % |
| Core-Clad Concentricity Error | ≤ 0.5 μm |
| Primary Coating Material | Acrylate |
| Primary Coating Diameter | 245 ± 7 μm |
| Max. Attenuation @ 1310nm | 0.36 dB/km |
| Max. Attenuation @ 1550nm | 0.22 dB/km |
| Point Loss @ 1310nm & 1550nm | 0.05 dB |
| Zero Dispersion Wavelength | 1302 – 1322 nm |
| Max. Slope @ Zero Dispersion Wavelength | 0.092 ps/(nm2·km) |
| Max. PMD @ Link Design Value | 0.1 ps/√km |
| Cable Cutoff Wavelength | ≤ 1260 nm |
| Refractive Index @1310nm | 1.467 |
| Refractive Index @1550nm | 1.468 |
| MULTI-MODE FIBERS | 62.5μm OM1 | 50μm OM2 | 50μm OM3 |
| Belden Fiber Code | U62 | U50 | U53 |
| Typical Core Diameter | 62.5 ± 2.5 μm | 50.0 ± 2.5 μm | 50.0 ± 2.5 μm |
| Cladding Diameter | 125 ± 1.0 μm | 125 ± 1.0 μm | 125 ± 1.0 μm |
| Clad Non-Circularity | ≤ 1 % | ≤ 1 % | ≤ 1 % |
| Core-Clad Concentricity Error | ≤ 1.0 μm | ≤ 1.0 μm | ≤ 1.0 μm |
| Primary Coating Material | Acrylate | Acrylate | Acrylate |
| Primary Coating Diameter | 245 ± 10 μm | 245 ± 10 μm | 245 ± 10 μm |
| Max. Attenuation @ 850nm | 3.5 dB/km | 3.0 dB/km | 3.0 dB/km |
| Max. Attenuation @ 1300nm | 1.5 dB/km | 1.0 dB/km | 1.0 dB/km |
| Min. Overfilled Bandwidth @ 850nm | 200 MHz.km | 500 MHz.km | 1500 MHz.km |
| Min. Overfilled Bandwidth @ 1300nm | 500 MHz.km | 550 MHz.km | 500 MHz.km |
| Point Loss @ 850nm & 1300nm | 0.10 dB | 0.10 dB | 0.10 dB |
| Numerical Aperture | 0.275 ± 0.015 | 0.200 ± 0.015 | 0.200 ± 0.015 |
| Refractive Index @ 850nm | 1.497 | 1.483 | 1.483 |
| Refractive Index @ 1300nm | 1.493 | 1.479 | 1.479 |
LSZH Fiber Optic Cable – Single Mode & Multi Mode

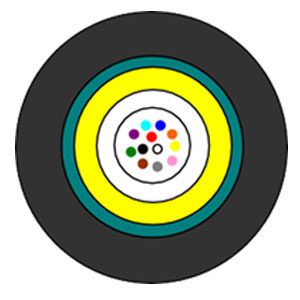

Fiber Optic-Central Tube- Aramid Yarn – Armored/Single LSZH Jacket
Cable Characteristics-
| DESCRIPTION: | ||
| 2 to 48 optical fibers, Central gel filling loose tubes, Flexible non-metallic strength member – aramid yarn, CSTA armor, Single LSZH jacket (black). | ||
PHYSICAL CHARACTERISTICS | ||
| Fiber Type | 125/250 μm | |
| Number of Fibers | 2 to 48 | |
| Fiber Color Code Chart: | ||
| Number | Color | |
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Pink | |
| 12 | Aqua | |
| Buffer Tube Diameter | 3.0 mm | |
| Buffer Tube Material | PBT – Polybutylene Terephthalate | |
| Buffer Tube Filling Material | Synthetic Thixotropic Gel | |
STRENGTH MEMBER: | ||
| Strength Member Material | Aramid yarn | |
ARMORING: | ||
| Armor Type | Corrugated | |
| Armor Material | Steel Tape | |
| Armor Thickness | 0.15 mm | |
OUTER JACKET: | ||
| Outer Jacket Material | LSZH –Low Smoke Zero Halogen | |
| Outer Jacket Nom. Wall Thickness | 1.1 mm | |
| Outer Jacket Color | Black | |
OVERALL DIAMETER: | ||
| Overall Nominal Diameter | 7.3 mm | |
MECHNICAL CHARACTERISTICS | ||
| Operating Temperature Range | – 40℃ To + 70℃ | |
| Storage Temperature Range | – 40℃ To + 70℃ | |
| Bulk Cable Weight | 40 kg/km | |
| Max. Load for Installation | 1000 N, Passes IEC794-1 | |
| Max. Load for Long Term Application | 400 N, Passes IEC794-1 | |
| Min Bend Radius for Installation | 20 × Cable OD, Passes IEC794-1 | |
| Min Bend Radius for Long Term Application | 10 × Cable OD, Passes IEC794-1 | |
| Crush Resistance | 1000 N/100mm, Passes IEC794-1 | |
| Impact Resistance | Passes IEC794-1 | |
| Solar Radiation Resistance | Passes IEC794-1 | |
| Compound Flow | Passes IEC794-1 | |
| Cyclic Flexing | Passes IEC794-1 | |
APPLICABLE SPECIFICATION AGENCY COMPLIANCE | ||
APPLICABLE STANDARDS | ||
| Specification | IEC 60794-1, EIA/TIA-455, | |
| EU RoHS Compliant (Y/N) | Y | |
| EU RoHS Compliance Date | Aug 2007 | |
SUITABILITY | ||
| Suitability – Indoor (Y/N) | Y | |
| Suitability – Outdoor (Y/N) | Y (where waterproof is not strictly required.) | |
| Suitability – Aerial (Y/N) | Y | |
| Suitability – Duct (Y/N) | Y | |
| Suitability – Direct Burial (Y/N) | N | |
| Sunlight Resistance (Y/N) | Y | |
Optical Characteristics
SINGLE MODE FIBERS
| G652.D |
| Belden Fiber Code | U12 |
| Typical Mode Field Diameter @ 1310nm | 9.2 ± 0.4 μm |
| Typical Mode Field Diameter @ 1550nm | 10.4 ± 0.5 μm |
| Cladding Diameter | 125 ± 0.7 μm |
| Clad Non-Circularity | ≤ 0.7 % |
| Core-Clad Concentricity Error | ≤ 0.5 μm |
| Primary Coating Material | Acrylate |
| Primary Coating Diameter | 245 ± 5 μm |
| Secondary Color Coating Diameter | 250 ± 10 µm |
| Max. Attenuation @ 1310nm | 0.36 dB/km |
| Max. Attenuation @ 1550nm | 0.22 dB/km |
| Point Loss @ 1310nm & 1550nm | 0.05 dB |
| Zero Dispersion Wavelength | 1302 – 1322 nm |
| Max. Slope @ Zero Dispersion Wavelength | 0.092 ps/(nm2·km) |
| Max. PMD @ Link Design Value | 0.1 ps/√km |
| Cable Cutoff Wavelength | ≤ 1260 nm |
| Refractive Index @1310nm | 1.466 |
| Refractive Index @1550nm | 1.467 |
| MULTI-MODE FIBERS | 62.5μm OM1 | 50μm OM2 | 50μm OM3 |
| Belden Fiber Code | U62 | U50 | U53 |
| Typical Core Diameter | 62.5 ± 2.5 μm | 50.0 ± 2.5 μm | 50.0 ± 2.5 μm |
| Cladding Diameter | 125 ± 1.0 μm | 125 ± 1.0 μm | 125 ± 1.0 μm |
| Clad Non-Circularity | ≤ 1 % | ≤ 1 % | ≤ 1 % |
| Core-Clad Concentricity Error | ≤ 1.5 μm | ≤ 1.5 μm | ≤ 1.0 μm |
| Primary Coating Material | Acrylate | Acrylate | Acrylate |
| Primary Coating Diameter | 245 ± 7 μm | 245 ± 7 μm | 245 ± 7 μm |
| Secondary Color Coating Diameter | 250 ± 10 μm | 250 ± 10 μm | 250 ± 10 μm |
| Max. Attenuation @ 850nm | 3.5 dB/km | 3.0 dB/km | 3.0 dB/km |
| Max. Attenuation @ 1300nm | 1.0 dB/km | 1.0 dB/km | 1.0 dB/km |
| Min. Overfilled Bandwidth @ 850nm | 200 MHz.km | 500 MHz.km | 1500 MHz.km |
| Min. Overfilled Bandwidth @ 1300nm | 600 MHz.km | 500 MHz.km | 500 MHz.km |
| Point Loss @ 850nm & 1300nm | 0.10 dB | 0.10 dB | 0.10 dB |
| Numerical Aperture | 0.275 ± 0.015 | 0.200 ± 0.015 | 0.200 ± 0.015 |
| Refractive Index @ 850nm | 1.496 | 1.482 | 1.482 |
| Refractive Index @ 1300nm | 1.491 | 1.477 | 1.477 |
| Min. G-Ethernet Transmission Distance@850nm | 300 m | 550 m | 1000 m |
| Min.G-Ethernet TransmissionDistance@1300nm | 550 m | 550 m | 600 m |
