Load Cell Cable Manufacturers
“MEM” provides special customised ‘Load Cell Cables Manufacturers” to match the specifications .

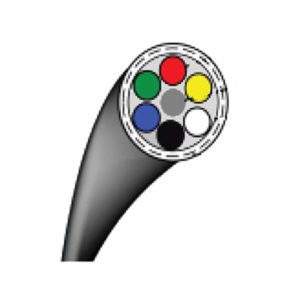

The widely used Load Cell Cables are with the following specifications :
- Conductor size: 0.5 sq mm / 0.75 sq mm / 1.0 sq mm
- Conductor material: Annealed tinned copper / Annealed Bare copper
- Insulation material: PE(Polyethylene) / PVC
- Screening: Individual Pair / Core screened as per the load cell design.
- Overall screening with aluminium mylar tape and ATC drain wire
- Screen material options : Aluminium mylar tape with ATC drain wire / Annealed Tinned Copper wire braiding
- Inner / Outer Sheath: FR PVC
- Armouring: Galvanized Steel Round wire
- Applicable standards: BS 5308 (Pt-2), IS: 8130-84, IS: 5831-84, IS: 6474-84, IS:3975
What is Load Cell Cable?
Simply put, Load Cell Cables act as both a power and communication channel, bridging the indicator and load cells together. Power originates from the indicator through the excitation wires in a Load Cell Cable.
Our company manufactures the finest Load Cell Cables that are majorly installed in multiple load cell weighing systems. In this, load cell has to be electrically connected so that the signal (output) lines, excitation (power supply) and sense lines are in parallel.

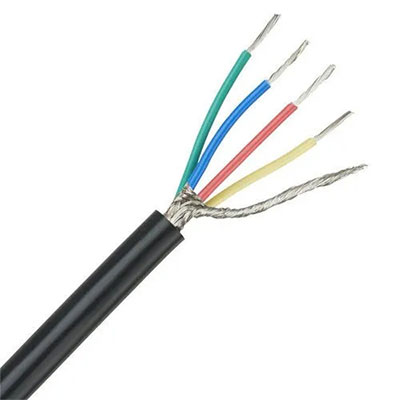

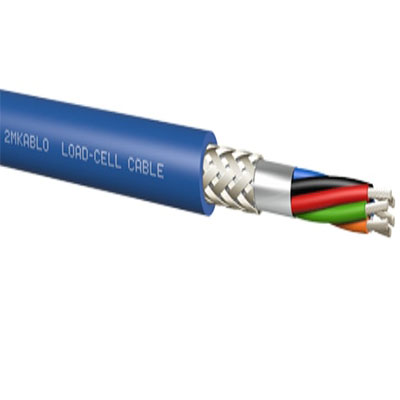

With the strong support of our highly experienced professionals, we are engaged in offering a qualitative array of Load Cell Cables. These cables are small cross section cables, available in different sizes to choose from, ensure a reliable signal transmission in both electronic and electrical equipment. Incorporated with a special PE / PVC formulation, our Load Cell Cables ensures a long-life operation to the end-user. It is widely used for electronic weighing systems and is highly appreciated in the market. We provide 4 wire and 6 wire load cell cables to our esteemed clients in nominal prices.
We offer the exclusive range of Load Cell Cables across the globe. These Load Cell Cables are highly in demand in the market owing to its durability, diverse tolerances, current conducting capacity and other technical specifications.
Key Features
- Unmatched durability
- Extremely flexible
- Longer service life
- Excellent performance
Technical Details for the Load Cell Cables
- Insulation Resistance 1000 M/ km
- Operating Voltage 24 V
- Testing Voltage 2000V
- Temperature Range During Operation -40°C to 105°C
Feature
- Minimum transmission loss
- Shielded with ATC braid or Aluminium Mylar foil with Drain Wire
- Can be customized also
