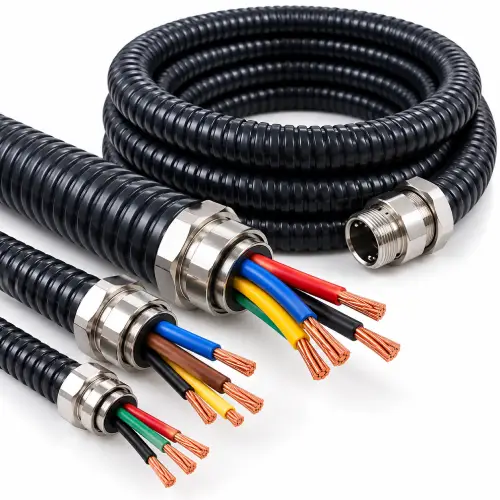

Mach Flex Cables Suppliers

Mach Flex Cables Supplier

Overview

Belden introduce the machine builder choice Mach Flex cables based on the following standards: DIN EN 50525-2-51 (VDE 0285-525-2-51): 2012-01 VDE-REG-Nr. 8770

Machines are becoming highly systemized, smaller and compact driven by special requirement of end users and customers. These challenge machine builders who need to stay competitive while ensuring a robust performance for their machine. Velden is introducing a new line of flexible machine cable to aid machine builders tackle this challenge  by offering cables in smaller sizes that save installation space and are highly durable to meet the flexibility, physical and mechanical requirement needed.

Belden’s machine builder choice Mach Flex cable have the following advantages which ensures great performance level for the machine builders and higher uptime for the end users.

  • Flexible conductor Insulation & sheath material
  • Oil resistant D/N EN 50290-2-22(TM54)
  • Wider fixed temperature range (-40  x 80 deg C)
  • Excellent shield effectiveness
  • Excellent Sunlight (UV) & Chemical Resistant
  • Environment friendly Cables (ROHS)

Speciality

Continuous motion cause many standards industrial cables to suffer insulation damage and cracking, Jacket abrasion or shield degradation.

Designed specifically for the rigors of constant motion Mach Flex cables helps you minimize unexpected and expensive downtime.

Our Mach Flex Cable has bending radius as tight as 5x cable O.D. as compared to the industry standard of 10 x cable O.D. with this tighter bending radius you get greater cable flexibility.

Our Mach Flex Cables have a minimum of upto 1 million flex life cycles and maximum of 14 Million flex life cycle

Application

  • Drag Chain
  • Conveyor Systems
  • Machine Handling Systems
  • Multi-Axis Storage
  • Motion – Controlled Video
  • Continuous Flexing Application

      Specifications of Mach Flex Cables
      Conductor Material Annealed Electrolytic Grade Flexible Copper
      Conductor Type Multi-Stranded Flexible
      Conductor Size Customized
      Insulation Extruded FR PVC / HR PVC
      Screening (Optional) Type….….1 Aluminium Mylar Foil with ATC Drain wire
      Type….….2 Annealed Tinned Copper Wire Braided
      Inner / Outer Sheath Flame Retardant PVC
      Armoring (Optional) Galvanised Steel wire Braided type

      Special Features of Mach Flex Cables
      Conductor  Highly Flexible Class -5
      Insulation & Sheath Material Heavy Duty Extra Flexible PVC
      Oil Resistant As per DIN EN 50290-2-22 (TM54)
      Shield Effectiveness Excellent
      UV Sunlight & Chemical Resistant Excellent
      Operating Temperature Range -40 deg C to 80 deg C
      Life Cycles Minimum 1 million flex
      Maximum 14 million flex
